Description

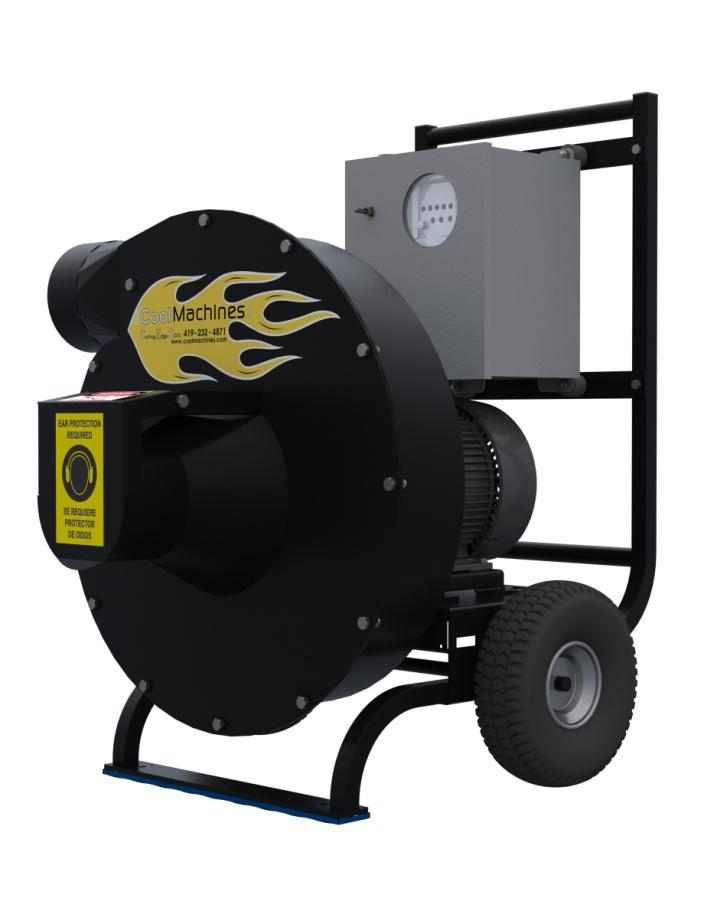

Cool Machines C2U147 7.5 h.p. E-Vac Electric Insulation Vacuums
Performance Data:
Vac Strength: 25 “WC (0.062 bar)
Airflow: 3200 CFM (5437 m3/h)
Specifications
Weight: 170 lbs (163 kg)
LxWxH in: 30″ x 28″ x 38″ / cm: 76.2 x 71.1 x 96.5
Blade Size (Height x Diameter) in: 3″ x ø20″ / cm: 7.62 x ø50..8
Vacuum Strength: 25″ Water Column (0.062 bar)
Airflow: 3200 CFM (5437m³/h
Motor: 7.5 hp electric
Power Requirements: Grid: 240 volt, 1 phase, 30amp grid; Grid: or 480 volt 3 phase 10amp; Generator: 10kw
Inlet & Outlet: 6″ / 15.25cm
Warranty: 3 year (limited)
Powder Coated: Yes
Adjustable Fan Speed: Yes
Hourmeter / Tachometer: Yes
Wheels (Run Flat): 10″ / 25.4cm
Chamber Material: 1/4″ / .64cm AR400
Optional HD Chamber: 1/2″ / 12.7mm AR400
Blade Material: 1/2″ / 12.7mm AR500
Input.Output Safety Switches: Yes
Noise Level: Very Low
